2-Pack 1.3 Inch LCD Display Module, 240x240 Full Color TFT IPS Screen, ST7789 Driver 4-Wire SPI Interface, 3.3V-5V Compatible, for Embedded HMI, Smart Device & DIY Projects

The SWIFT-LCD-13 is a professional-grade 1.3-inch full-color TFT LCD display module designed for high-performance embedded applications. Featuring a crisp 240x240 resolution and IPS wide-viewing technology, it delivers stunningly clear visuals and vibrant colors from any angle. Whether you are building a smart wearable, a custom dashboard, or an interactive IoT node, this module provides the reliability and visual impact your project deserves.Key AdvantagesExceptional Clarity: With 240*240 pixels packed into a 1.3" screen, enjoy high pixel density for smooth text and sharp graphics. The IPS panel ensures no color inversion or blurring even when viewed from extreme angles.Simplified Integration: Internal pull-up resistors for RES (Reset) and BLK (Backlight) pins mean fewer wires and faster setup. It’s ready to light up as soon as you connect power and SPI data.Versatile Compatibility: Supports a wide 3.3V-5V power supply, making it plug-and-play with Arduino, ESP32, Raspberry Pi, and STM32 platforms.Technical SpecificationsScreen Size: 1.3 InchResolution: 240 x 240 PixelsDriver IC: ST7789Interface: 4-Wire SPIOperating Voltage: 3.3V - 5.0VSupply Current: 80mA (Typical)Viewing Angle: Full View (IPS)Operating Temp: -20°C to +70°CModule Size: 38.4mm x 30.4mmPin Interface DefinitionsG (GND): GroundV (VCC): Power Supply (3.3V-5V)SCL: SPI Serial Clock InputSDA: SPI Data Input/OutputDC: Data/Command SelectionCS: Chip Select (Active Low)(Note: RES and BLK pins are pre-configured internally for ease of use.)Package List2 x SWIFT-LCD-13 Display Module2 x GH1.25 to Dupont 6-Pin Anti-reverse Cable

• 【Vivid IPS Full-Color Display】 Features a 1.3-inch TFT LCD screen with 240*240 HD resolution. Utilizing IPS technology, it provides a full viewing angle, vibrant colors, and high contrast, ensuring crystal-clear image quality for any embedded project or smart device.
• 【High-Performance Driver】 Equipped with the powerful ST7789 driver chip and a standard 4-wire SPI communication interface. This ensures high-speed data transmission and stable display performance while minimizing the number of I/O pins required on your controller.
• 【Simplified Hardware Connection】 Designed for ease of use, the internal circuitry automatically pulls the RES (Reset) and BLK (Backlight Control) pins high. This eliminates the need for extra external wiring for initialization and backlight activation, significantly reducing hardware connection complexity.

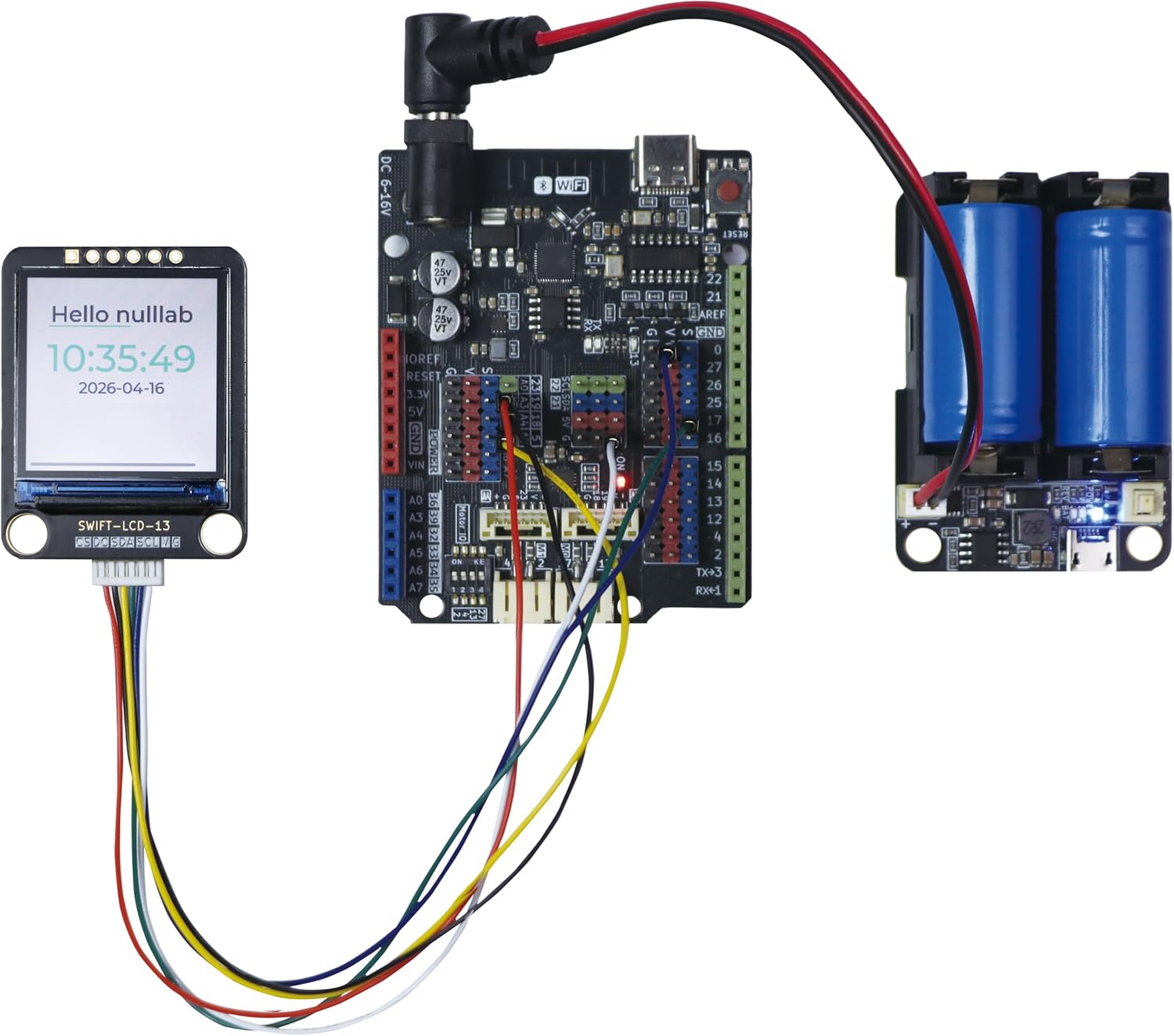

• 【Wide Voltage & Low Power Consumption】 Supports a wide operating voltage range from 3.3V to 5V, making it perfectly compatible with Arduino, STM32, Raspberry Pi, and ESP32. With a low working current of 80mA, it is ideal for battery-powered portable devices.
• 【Compact & Easy to Integrate】 Measuring only 38.4*30.4mm, the module includes a GH1.25 interface and comes with a GH1.25 to Dupont 6-pin anti-reverse cable.
